Product introduction
Powder sintered filter core is made of high-purity titanium powder or stainless steel powder after sintering, high temperature and high vacuum;
uniform product structure, high porosity;
good mechanical properties, high strength, welding and cutting;
heat resistance and resistance Corrosiveness; excellent corrosion resistance in acid / organic compound / alkali solution

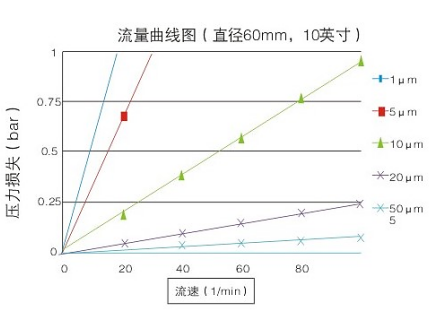

Technical Data Sheet
| Accuracy [μm] [liquid / gas] | 1 / 0.09 | 2 / 0.18 | 3 / 0.27 | 5 / 0.45 | 10 / 0.9 | 20 / 1.8 | 30 / 2.7 | 50 / 4.5 | ||
| Porosity(%) | 40 ± 5 | 40 ± 5 | 40 ± 5 | 40 ± 5 | 41 ± 5 | 44 ± 5 | 44 ± 5 | 46 ± 5 | ||
| Relative breathable prime number | 5 * 10 | 1 * 10 | 5 * 10 | 1 * 10 | 5 * 10 | 1 * 10 | 5 * 10 | 1 * 10 | ||
| (L / min * Pa * cm) | ||||||||||
| length | 5 "10" 20 "30" 40 " | Operating temperature | <180 ℃ | |||||||
| (customizable) | ||||||||||
| diameter | 22-60mm | *** Great temperature resistance | <300 ℃ | |||||||
| Filter material | Stainless steel (304 / 316L / ···) titanium | *** Big import pressure | 5.0bar | |||||||
| Interface material | Stainless steel (304 / 316L / ··· | It is recommended to replace the differential pressure | 1bar | |||||||
| Filtration area | 0.05 square meters / 10 " | *** large differential pressure | 3.5bar (25 ℃) | |||||||
