Manufacturer:Jiangsu Hanchen Machinery Technology Co., Ltd.

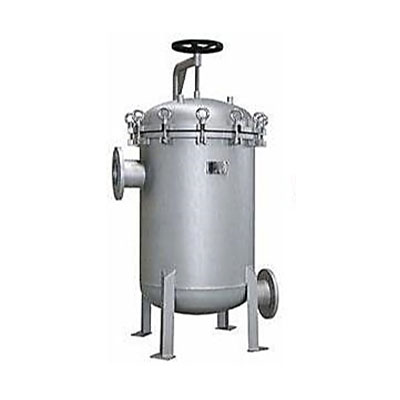

Features
The filter has a simple structure and is easy to operate. The upper seal is locked by a flanged bolt.
Filter materials can be selected from high-quality stainless steel SS304 or 316L.
Filter area can be customized according to user output.
The outer surface is sandblasted or polished, beautiful and generous.
Filter installation dimensions can be designed according to customer requirements.
Structure diagram
technical parameter
| The main material | Filter element form | Filtration area | Filtration accuracy | Working pressure | Working pressure | design pressure | Interface form | Top cover connection form |
| SS304 | Metal mesh zigzag | -60 ㎡ | 3μm- | ≤1.0MPa | 10kgf / c ㎡ | 1.6MPa | Flange connection | Live bolt |
| SS304L | ||||||||
| 321 | ||||||||
| 316L | Microporous folding membrane | -60 ㎡ | 0.2μm- | ≤1.0MPa | 4kgf / c ㎡ | 1.6MPa | Outer pipe thread | High-strength bolts |
| CS | ||||||||
| other | Filter basket | -8 ㎡ | 25μm- | ≤1.0MPa | 2kgf / c ㎡ | 1.6MPa | Inner pipe thread | Hoop |
| Filter bag | -8 ㎡ | 1μm- | ≤1.0MPa | 1.5kgf / c ㎡ | 1.6MPa | Clamp connection | Quick opening | |
| Metal wedge form | -12.5 ㎡ | 25μm- | ≤1.0MPa | 10kgf / c ㎡ | 1.6MPa | User specified | ||
| Wire-wound filter | -12.5 ㎡ | 1μm- | ≤1.0MPa | 2kgf / c ㎡ | 1.6MPa | |||
typical application:
Filtration of nylon polymer quenched water, process water and pelletized water, beverages and food, pharmaceuticals, cosmetics, paints, inks, edible oils, industrial water, etc
