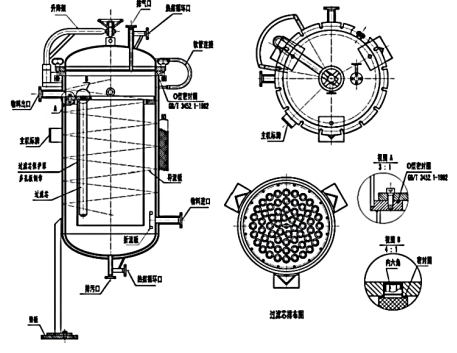

Structure diagram
technical parameter
| The main material | Filter element form | Filtration area | Filtration accuracy | Nominal pressure (inside) Mpa | Nominal pressure (jacketed) | Differential pressure | Nominal diameter (mm) | Working temperature (℃) | Sealing material |
| SS304 | Metal mesh zigzag | -60㎡ | 3μm- | PN1.0-5.0 | ≤0.6Mpa | 25kgf / c㎡ | DN15-500 | -430 | PTFE YBR Nitrile Rubber Metal Winding Pad |
| 321 | |||||||||
| 316L | |||||||||
| CS | |||||||||
| Filter basket | -8㎡ | 25μm- | PN1.0-5.0 | ≤0.6Mpa | 2kgf / c㎡ | DN15-500 | -430 | ||
| Wire-wound filter | -12.5㎡ | 1μm- | PN1.0-5.0 | ≤0.6Mpa | 2kgf / c㎡ | DN15-500 | -230 | ||
| Metal sintered | -12.5㎡ | 1μm- | PN1.0-5.0 | ≤0.6Mpa | 20kgf / c㎡ | DN15-500 | -430 | ||
typical application:
In the nylon polymerization process, lactam filtration, filtration of acid, concentrated solution and modifier, filtration of PVA solution, coating, coating and paint filtration, caustic soda, soda ash, concentrated dilute sulfuric acid, carbonic acid, uronic acid, ammonia, Hydrocarbons
